In this modern world of fast-changing electronic circuits, the basis used to connect and make other electronic parts functional is a printed circuit board. There are several forms of printed circuit boards, but the most common types are rigid PCB and flexible PCB. This article discusses what makes each unique, key considerations, design implications, and practical applications.
What are Rigid PCBs
The rigid PCB is the most traditional form of circuit board. These are fabricated from solid, inflexible material, normally glass-reinforced epoxy resin. Due to their rigid nature, this construction offers excellent mechanical support for components. There are single-sided or multilayer rigid PCBs using one or both sides of the non-conductive substrate with conductive copper traces etched on it for electrical paths. Such layers interconnect through vias.
What are Flexible PCBs

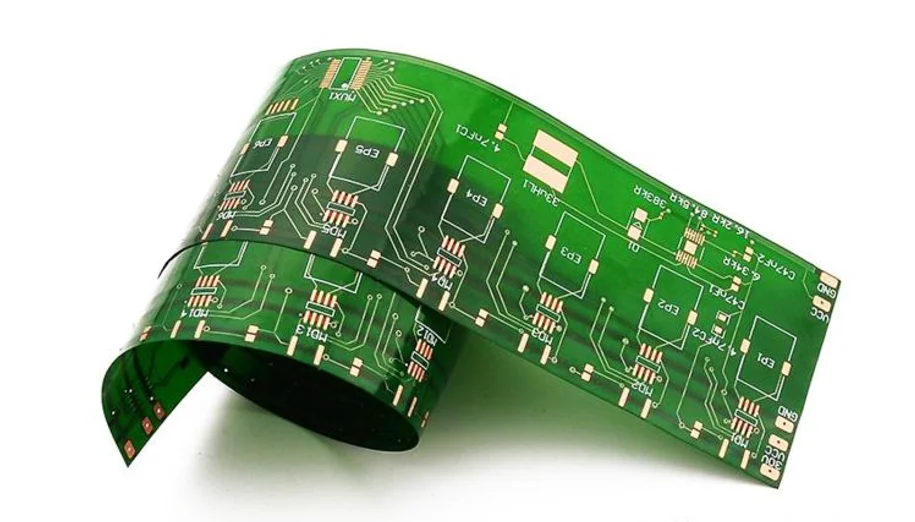

Flexible PCBs, sometimes called flex circuits, come with the advantage of their great adaptability. They are usually made from flexible plastic materials such as polyimide or polyester films. Such materials enable the PCB to bend, twist, and take different shapes without necessarily affecting functionality. Flexible PCBs can also be single-sided, double-sided, or multi-layered, with conductive traces etched onto the flexible substrate. These cores have extra members usually in the form of stiffeners or cover layers added for providing support and protection in certain areas.
Key Factors in Choosing Between Rigid and Flexible PCBs
There are a number of factors to be considered while choosing between rigid and flexible PCBs. The needs for an application will often drive which type of PCB is to be used.
Application Requirements: operating environment, required mechanical stability, and necessary electrical performance have to be considered. Where structural support and rigidity are called for in an application, it should be one in which rigid PCBs are applied, whereas situations that may call for flexibility and the capacity to conform to complex shapes may be availed by flexible PCBs.
Mechanical Constraints: Designs that require bending of a PCB or accommodation of a PCB within an enclosure warrant a flexible PCB. Where there is more imminence and requirement for mechanical stability, the use of rigid PCBs shall be considered. Thus, as compared to this, the mechanical stress a PCB suffers can therefore be greater still, to an extent that there is even cracking or falling of a component. The flex PCB reduces component mechanical vibration/stress, with lesser chances for failure of any component.
Space Constraints: When the space is confined, the flexible PCBs have an absolute advantage. Their ability for bending and flexibility gives them a better capability of using the space effectively; hence, they may be accommodated in small or irregularly shaped areas. Rigid PCBs find their applications when the space constraints are not critical.
Cost Considerations:Cost is another very important consideration for any project. The cost of rigid PCBs is normally less expensive due to their less complicated construction. Generally, though, the cost has got to be weighed against design complexity, numbers of layers, and quantity produced. Sometimes, the cost of flexible PCBs is higher, especially in low volumes.
Reliability and Durability: Rigid or flexible, PCBs can be reliable if their design and manufacture are appropriate. Operating environment, environmental stresses, complexity in design, etc may influence the reliability of a type of PCB chosen. Mechanically, the Flexible PCBs are more stress resistant compared to the rigid ones, but they might be vulnerable when it comes to environmental aspects.
Component Density:Generally, rigid PCBs support higher component density, while in the case of flexible PCBs, there is some limitation.
Thermal Management:Rigid PCBs often serve better concerning thermal management and are therefore more suitable for applications requiring high heat dissipation. Because of their flexibility, flexible PCBs may present some challenges with regard to thermal management.
Design Considerations for Flexible PCBs
One has to make allowance for their peculiar characteristics in designing with flexible PCBs.
Bending Radius: Minimum radius of bend shall not be there for flexible PCBs so that they may not get damaged. This again depends upon the type and thickness of material used; however, it has to be within a specified range set by the manufacturing company.
Component Placement: Component placement needs to be done, and the components must be oriented so that solder joints or traces are not stressed by flexing. Height, orientation, and component distribution must be balanced in providing flexibility with reliability.
Flex-to-Rigid Transitions: Many flexible PCBs must transition into rigid sections. Transition regions must be very carefully designed as they can tend to focus stresses and often fail. Several techniques are available, including tapering the thickness of the flex PCB and applying stiffeners, which make smooth transitions possible.
Design Considerations for Rigid PCBs
There are rigid PCBs design considerations for structure and mounting options.
Design Considerations for Rigid PCBs
Board Size:Rigid PCBs come in various sizes. A size must be chosen that best suits the space availability of the area for application. The factors that are important in consideration at design are the components’ dimensions and enclosure so that the PCB can fit.
Mounting Options: In rigid PCBs, mounting options vary from surface mount technology to through-hole technology. It entirely depends upon the kind of component used, the manner of assembling the process, and the mechanical strength to be attained.
Layer Stackup: Furthermore, with a rigid PCB, more than one layer can be used along with this. It is observed that selection of the number of layers in a rigid PCB is the major issue while signal integrity, power distribution, and thermal management are kept in consideration.
Practical Applications of Rigid and Flexible PCBs
Starting from aerospace, medical devices, automotive, and LED lighting up to wearable technology, flexible PCBs will be used because they can be folded or bent into compact shapes. All this allows integration into such devices as fitness trackers, satellites, medical imaging systems, and car dashboards. Consumer electronics, including smartphones and TVs, will use rigid PCBs since they are stable and not too expensive. These also find very important applications in automotive electronics, such as engine control units, and in industrial equipment that needs resistance against harsh conditions.
Combining Rigid and Flexible PCBs: Rigid-Flex PCBs
Sometimes, though, the best of both worlds is rigid and flexible PCBs. A circuit board is termed a rigid-flex PCB when it contains a hybrid of rigid and flexible circuits assembled. They do allow high component densities to be implemented for the rigid sections along with good thermal management and make sections with flex that enable conformability.
Silkbridge: Your Partner for High-Quality PCBs
Manufacturing the solutions, Silkbridge combines the best of British innovation with efficient manufacturing in China. Equipped with an in-house R&D team that is excellent at PCB design, Silkbridge deploys its state-of-the-art design and simulation software in developing optimized layouts.

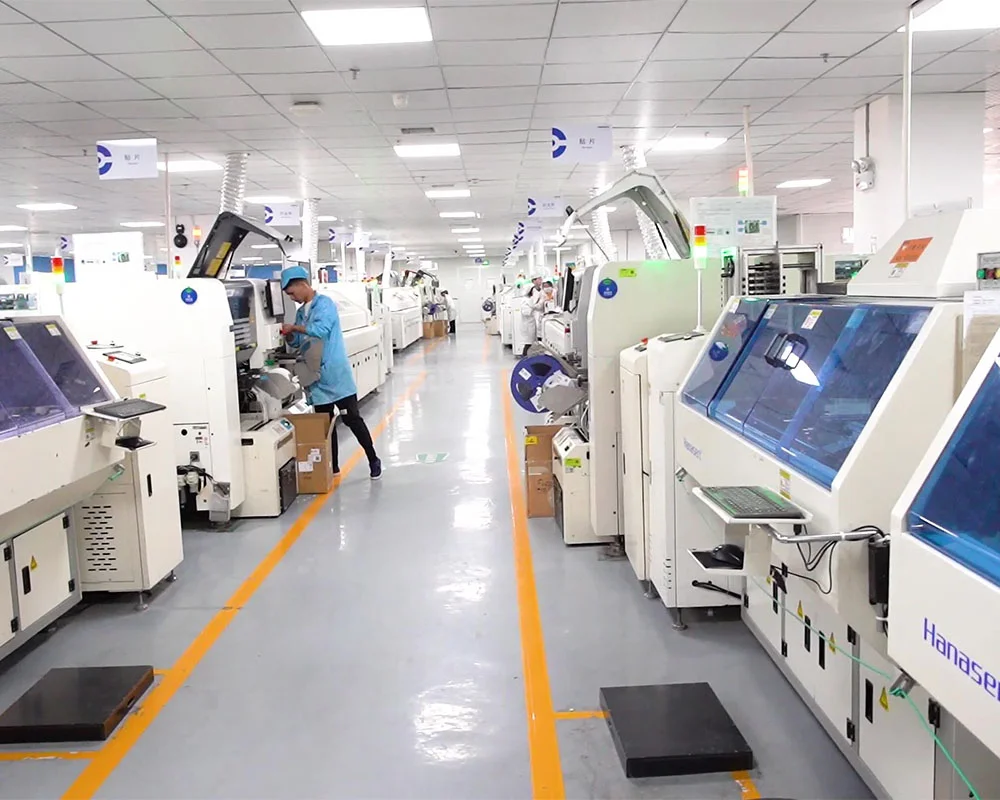

Their fully automated SMT lines ensure high-speed and precise PCB assembly. Starting from the incoming material, inspection to outgoing quality control goes through automated optical inspection and X-ray inspection and confirms that the PCBs do indeed reach certain requirements. Electronic engineering, including mechanical engineering of the product with design development of plastic injection moulds. Products offered: regular PCB, FPC, high-density interconnection PCB, stiff-flex PCBs, IoT PCB, and LED PCBs are some of their products.
