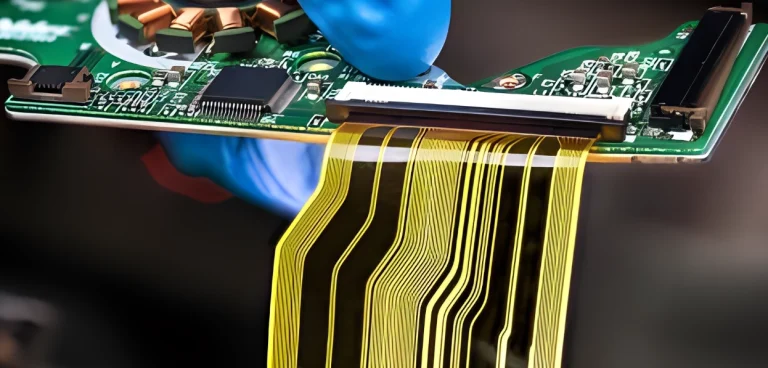

Stack-Up and Core Material Selection
Picking the correct materials is vital in flex rigid PCB design. Usually, the rigid parts use FR4, while the flexible sections depend on polyimide (PI) because of its heat resistance and ability to bend. Adhesive-less PI films are favored for very reliable uses. A balanced layer stack-up stops bending or strain. Also, think about copper weight, coverlay kinds, and insulation thickness based on how much bending is needed.

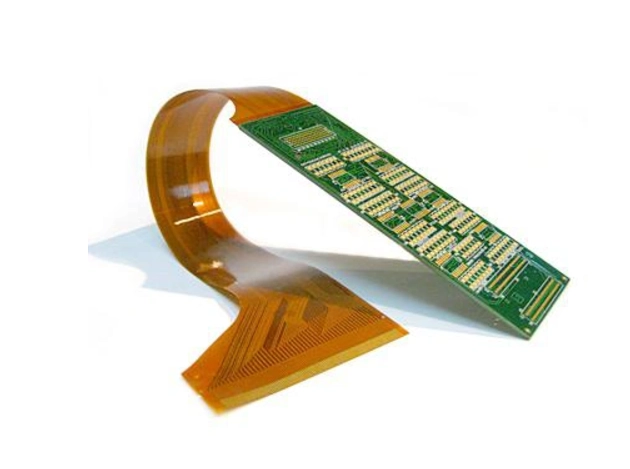

Flex Area Layout and Bend Radius Considerations
Creating for flexibility means reducing stress points. Flex areas must avoid sharp edges and right-angle trace paths. Instead, traces should flow smoothly and be spaced evenly. The smallest bend radius depends on layer count and material thickness, often 10 to 20 times the total thickness for active bends. Never place vias or thick copper layers in the bend area to keep the structure strong.
Controlled Impedance and Signal Path Design
For fast or RF uses, keeping steady impedance is key. This happens by carefully managing trace width and spacing, keeping insulation thickness consistent, and designing proper reference planes. Ground planes should stay unbroken. Differential pairs must travel together through the flex area. EMI reduction methods, like shielding traces and adding stitching vias, boost performance further.
Overview of Rigid Flex PCB Manufacturing Workflow
Lamination and Bonding of Rigid-Flex Structures
The manufacturing starts by preparing core materials and copper layers. Inner layers are patterned, etched, and stacked with prepregs, flexible glues, and coverlays. A big challenge is joining rigid and flexible layers without splitting or warping. Vacuum-assisted lamination creates a smooth, gap-free bond across the stack. This complex process benefits from automated alignment and checking systems. As a trusted China rigid flexible PCB provider, Silkbridge ensures steady lamination quality using precise equipment.
Hole Drilling, Imaging, and Final Finishing
After lamination, the board gets drilled and plated. Controlled-depth drilling makes blind or buried vias. Next, outer layers are patterned and etched. Surface finishes like ENIG or hard gold plating improve soldering and dependability. Silkbridge’s facilities handle dense via setups and complex multilayer stacks, supporting advanced connection performance.

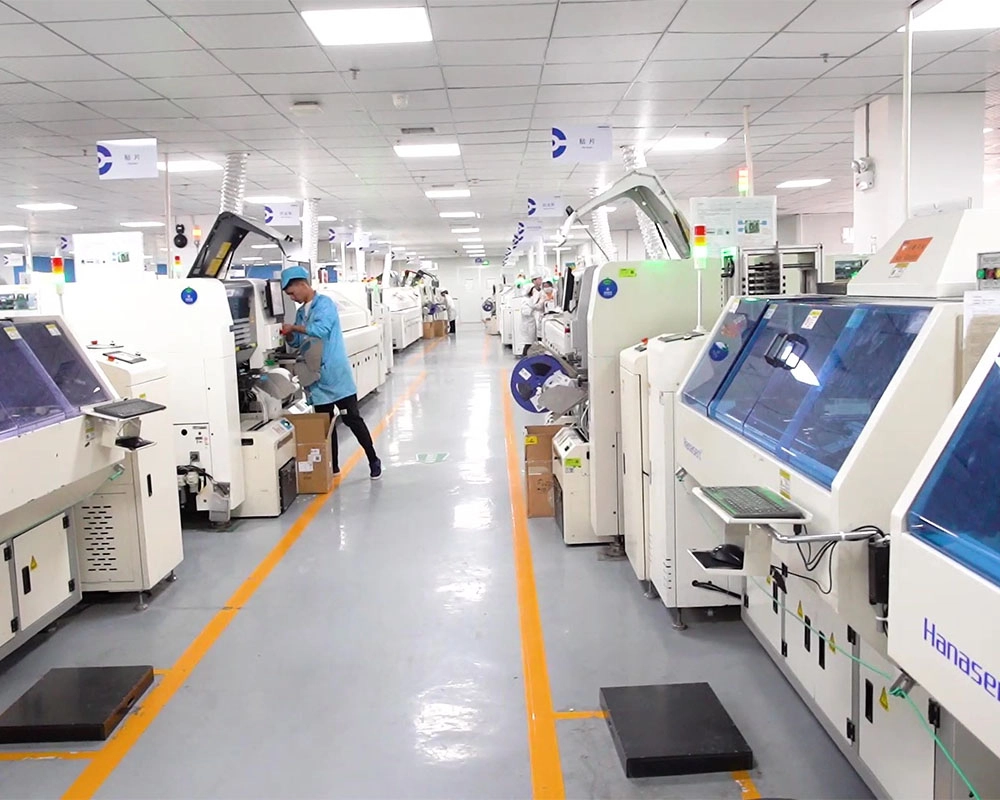

Advanced Rigid Flex PCB Assembly Practices
Rigid flex PCB assembly involves placing and soldering parts on both rigid and flexible sections. Challenges include keeping the board flat, protecting the flex area, and handling heat stress. Silkbridge uses SMT processes in cleanrooms, along with AOI and X-ray checks, to ensure no defects. They follow IPC-A-610 and IPC-6013 standards to guarantee high-quality results.
Prototyping Rigid Flex Circuits: What to Know
Before full production, a rigid flex PCB prototype is crucial to check the design and find problems early. It tests mechanical fit, electrical function, and flex ability. Silkbridge offers small-batch prototyping with quick delivery, letting engineers refine designs fast. With years of expertise, they improve stack-up and DFM guidelines to avoid expensive mistakes in large-scale production. Picking a dependable partner for rigid flex PCB prototype work ensures smoother scaling and fewer delays.

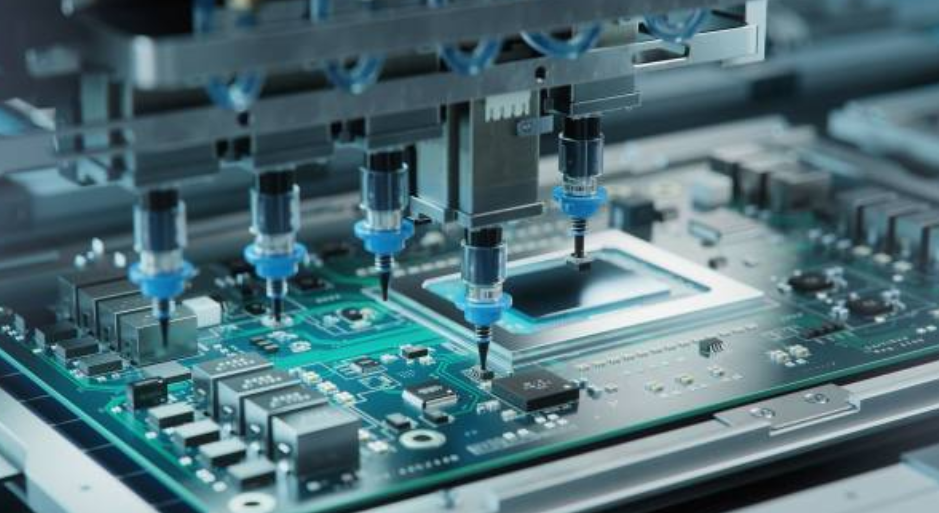

Why Choose a China-Based Manufacturer for Flex Rigid PCBs?
Scale and Custom Capabilities
China leads globally in PCB manufacturing due to its modern setup, supply chain links, and skilled workers. A qualified China flex rigid PCB manufacturer provides affordable customization, precise tolerance control, and a broad range of materials. From small prototypes to large production, flexibility and quick response are major benefits.
Silkbridge’s Core Competencies in Rigid Flex Fabrication
Silkbridge delivers rigid flex PCB solutions customized for complex needs. Their engineering team gives detailed help with design, stack-up simulation, and DFM optimization. Their products meet tough standards like ISO9001, IATF 16949, and UL certification. With in-house lamination, drilling, plating, and cleanroom assembly, Silkbridge manages the whole process in one place. They also provide heavy copper, high-frequency, high-Tg, and impedance-controlled options, serving industries from cars to planes.
Silkbridge Rigid Flex PCB Design and Manufacturing Service
Silkbridge focuses on full-cycle rigid flex PCB manufacturing. Their services include layout advice, material choices, high-speed signal modeling, and mechanical integration. They can build multilayer boards up to 20 layers, handling flex-to-install, dynamic bend, and high-density applications. Products are tested with flying probe, ICT, and AOI to ensure lasting reliability.
They also support OEM and ODM clients with private labeling, flexible order sizes, and quick responses. If a customer needs custom shapes, unique hole patterns, or specific EMI shielding, Silkbridge delivers exact results. Their CAM engineers ensure designs are ready for manufacturing from the start, making them a trusted partner for startups and big companies alike.
Final Thoughts: Designing for the Future of High-Density Electronics
Rigid flex PCBs are vital for today’s small, high-performing electronic systems. They make mechanical design simpler, reduce weight, and improve dependability. However, getting the best results depends on smart design and skilled manufacturing. Choosing the right partner ensures strength, signal quality, and cost savings.
