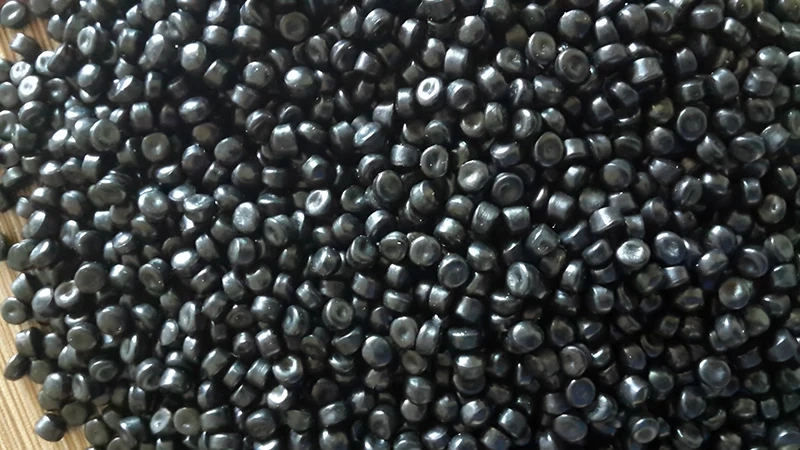

What is High-Density Polyethylene (HDPE)?
High-Density Polyethylene (HDPE) is a common plastic. It’s super strong and tough. It resists bumps and blocks water well. HDPE is cheap and easy to shape with injection molding. That’s why it’s used a lot in factories, cars, and everyday items. It comes from oil and has a simple structure. This makes it dense and sturdy. HDPE has many perks, but it also has some downsides. For example, it expands a lot when heated. It’s also hard to stick together.
Advantages of HDPE
Cost-Effective
HDPE costs less than fancy plastics or mixed polymers. It’s easy to find. This means you don’t need to buy a lot at once. It’s a budget-friendly pick for makers.
Mechanical Properties
HDPE isn’t as strong as high-tech plastics. But it’s still tough. It has good pull strength and resists cracks. It’s durable at a low price. This makes it great for things that need to last without costing too much.
Chemical Resistance
HDPE can stand up to many chemicals. It handles strong acids and bases well. But some things, like halogenated hydrocarbons or mineral oils, can harm it.
Recyclability
HDPE can be recycled. This makes it good for the planet. Makers who want less waste and greener products like using it.
Disadvantages of HDPE
High Thermal Expansion
HDPE expands a lot when hot. Its thermal expansion rate is 143 μm/°C. If not handled right, it can stretch too much when heated. It might warp when cooling.
Difficult to Bond
HDPE has low surface energy. This makes it hard to glue with regular adhesives. You need special glues or plastic welding to join it.
Flammability
HDPE comes from oil, so it burns easily. It catches fire above 340°C. It keeps burning unless you use fire-resistant types.
HDPE Injection Molding Applications
Industrial Applications
HDPE is used a lot in factories. It makes things like storage tanks, crates, mufflers, and covers.
Automotive Applications

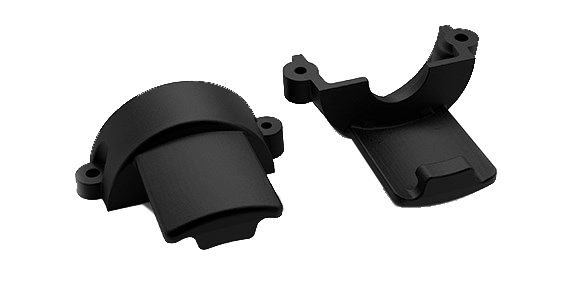

In cars, HDPE is used for fuel tanks and fluid containers. It’s also in cabin parts and interior trim pieces.
Consumer Goods Applications
HDPE makes many household items. Think of boat docks, cutting boards, plumbing parts, and outdoor cabinets. There’s also FDA-grade HDPE for food-safe products.
Properties of Injection Molded HDPE
Here’s a table with some key traits of injection-molded HDPE:
| Property | Value |
| Physical Density (g/cm³) | 0.954 |
| Shrinkage Rate | 0.0215 cm/cm |
| Rockwell Hardness (R) | 48.7 |
| Tensile Strength at Yield | 26.2 MPa |
| Elongation at Break | 583% |
| Flexural Modulus | 1.13 GPa |
| Melt Temperature | 246–280°C |
| Mold Temperature | 45–65°C |
These traits make HDPE good for many uses. But you need smart design and making skills to avoid issues like shrinking or warping.
Design Guidelines for HDPE Injection Molding
Good design makes molded parts strong and useful. These tips help make the design process better:
Wall Thickness
Keep wall thickness even across the part. Changes between thick and thin areas should be small. They shouldn’t go over 10-15% of the main thickness. The best wall thickness is 0.76 mm to 3.18 mm.
Shrinkage Management
HDPE can shrink up to 4%. Uneven cooling can cause warping or flaws. To avoid this, keep wall thickness steady. Control gate areas in molds too.
Radii Application
Sharp corners are hard to mold well. Add curves at corners. Use radii that are at least 25% of the wall thickness. For the strongest parts, use radii up to 75% of the thickness. This helps melt flow and cuts stress.
Draft Angle
Draft angles make parts pop out of molds easier. Simple shapes need little draft because HDPE slides well. But complex designs need 0.5% to 1% draft per side.
Part Tolerance
Tight tolerances raise costs. They need stricter molds. Pick tolerances based on what the part needs. Balance precision with cost.
Following these design rules helps make top-quality HDPE parts. It cuts down on making problems.
HDPE Processing Guidelines
Good processing rules are key for great HDPE injection molding results. HDPE doesn’t soak up water easily. If stored right, it may not need drying before molding. But if it gets wet during storage, drying is a must for good parts.
HDPE’s melt temperature is 246°C to 280°C. Mold temperature should stay between 45°C and 65°C. Higher mold heat can reduce part stress. It also gives a shinier finish. Injection pressure is usually 5.5 MPa to 10 MPa. This depends on part size and shape. Lower pressure can stop warping.
Injection speed matters too. Thin parts need fast speeds. That’s because HDPE hardens quickly. Thicker parts work better with medium speeds.
Potential Alternatives to HDPE
HDPE is great for many jobs. But it’s not always the best pick. Other materials like polypropylene (PP) or nylon might work better for some projects.
Polypropylene (PP) is a cheap plastic. It’s strong against wear and has low friction. It blocks water well too. Like HDPE, it’s easy to find and fits many uses.
Nylon is super strong. You can add glass fibers to make it even tougher. But it soaks up water. This makes it less good for wet places. Looking at these options helps makers pick the right material for their needs.
Succeeding With HDPE Injection Molding
Winning at HDPE injection molding needs smart design and a skilled making partner. Good design steps include even wall thickness and curved corners. Adding draft angles and managing shrinkage are key too. These stop flaws like warping or stress spots.

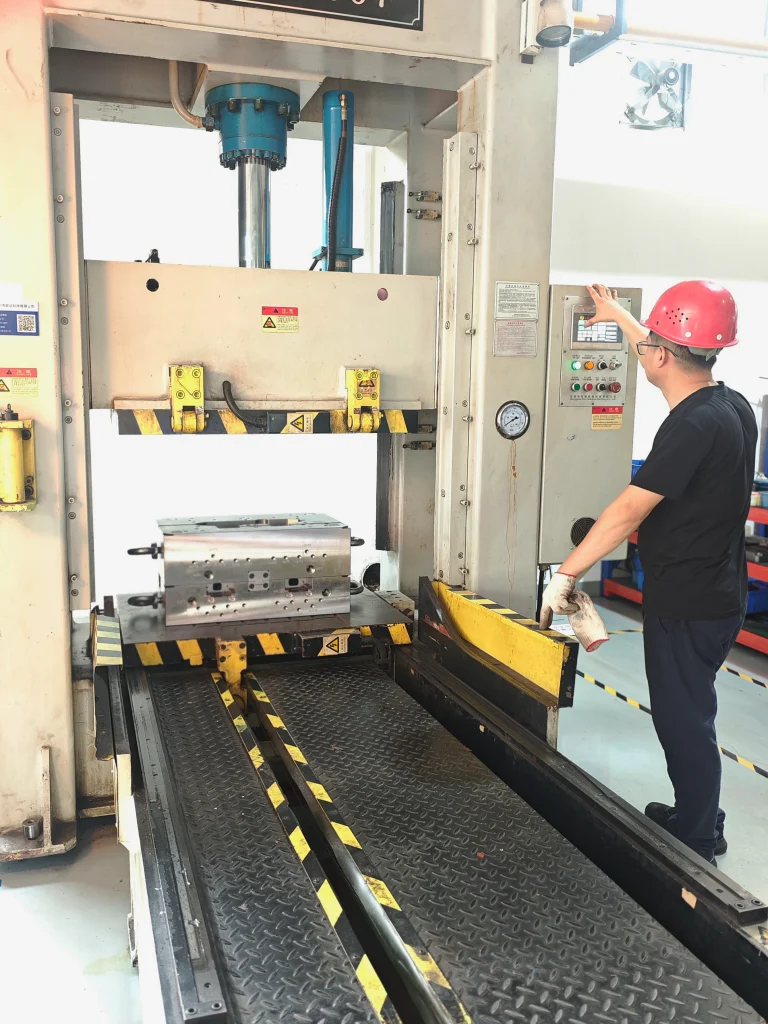

Teaming up with expert makers ensures the right settings. They control temperature, pressure, and speed. At Silkbridge, we’re pros at high-quality plastic injection molding. We use top-notch facilities with over 100 modern machines. These range from 180 tons to 1200 tons.
Our strict quality checks follow ISO 9001 standards. This ensures every part meets tough specs. With our design and making skills, clients get steady results. This works for both early models and big production runs.
Why Partner With Silkbridge Is Essential
Silkbridge mixes British creativity with Chinese making power. This gives unmatched plastic injection molding solutions. Started in Guangdong Province in 2014 by a British designer, we’re a top name in the industry. We use cutting-edge tech and careful quality checks.
We handle everything from product ideas to final assembly in one place. This cuts out extra suppliers. It makes things smoother for clients. It also keeps quality steady at every step.
Our factory has over 30 CNC machines. We also have EDM units and wire-cutting tools. These make molds with great precision. We produce over 30 million plastic parts each year. Our advanced machines meet needs for cars, gadgets, and more.
Partnering with Silkbridge gives access to world-class making skills. We also offer shipping services. These include DDP options by air, sea, or train. This makes logistics easy.
