What Is Overmolding in Injection Molding?
Overmolding vs. Insert Molding: Key Differences Explained

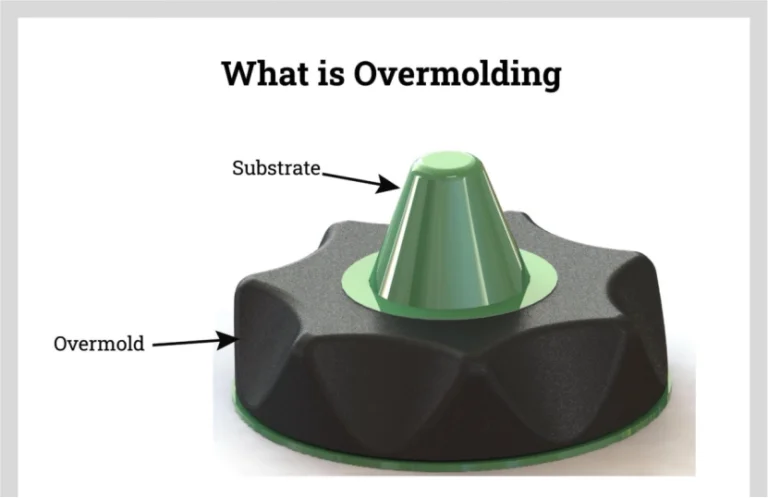

Overmolding is a manufacturing process where one material is molded over another. This method is used to create a single part with multiple materials. It is different from insert molding, which places a pre-formed component inside the mold before injecting plastic around it. In contrast, overmolding bonds the second material directly onto the surface of the first one.
Understanding what is overmolding in injection molding helps us see how it improves product design. It adds comfort with soft grips, increases durability, and gives a product a more attractive look. This is why plastic overmolding injection is widely used in industries like electronics, automotive, and medical.
Plastic injection overmolding makes it easier to combine function and design into one product. By applying different materials to different areas of a product, engineers can improve its grip, waterproofing, or resistance to harsh environments.
How the Injection Overmolding Process Works: A Step-by-Step Breakdown
From Design to Production: The 6 Stages of Overmolding
The injection overmolding process begins with careful planning and design. The first stage is creating the substrate, the base part of the product. This is followed by preparing the mold tool, which must fit both the base and the overmold layers. Good plastic injection mold tool design including insert molding and overmolding is key to avoiding defects and ensuring strong bonding.
Next, the base material is molded. After that, the second material is injected over it using a different mold or cavity. Then the part is cooled, trimmed, and finished. One example is Silkbridge’s medical-grade UV sterilizer casing. The hard shell is molded first, and a soft overmold is added to protect it during use.
Critical Factors for Successful Material Bonding
For overmolded plastic injection to work well, the materials must bond properly. This depends on chemical compatibility. For example, TPU bonds well with ABS. Mechanical bonding is also important. Designers often use small grooves or undercuts in the mold to lock the two layers together. These features help the overmold stick better and stay in place.
The success of plastic injection overmolding also depends on temperature control and precise timing. Each step, from heating the resin to cooling the part, must be managed to avoid problems like bubbles or weak bonds.
Top 5 Benefits of Plastic Injection Overmolding for Modern Industries
Enhanced Performance in Harsh Environments
One of the main benefits of overmolding plastic injection molding is that it helps products perform better in tough environments. Overmolded parts resist chemicals and heat, which is why they are perfect for automotive connectors or tools used on construction sites. Overmolding also helps reduce vibration, which protects sensitive parts in devices.
Cost-Effective Assembly and Reduced Part Count
Another advantage is that it makes products cheaper to assemble. Instead of using screws or glue to join parts, overmolding creates a single, strong unit. For example, waterproof smartwatch buttons made with custom plastic injection overmolding need fewer parts and take less time to make. This saves money and improves quality.
Industry-Specific Applications of Overmolded Plastic Injection
Consumer Electronics: Merging Form and Function
In consumer electronics, plastic overmolding injection helps create sleek and functional products. Overmolded grips make VR headsets easier to hold. Soft seals built into wireless earbuds keep water out without needing extra gaskets. Silkbridge uses automated SMT lines to combine PCBs and plastic housing with precision.
Automotive: Safety and Longevity Under the Hood

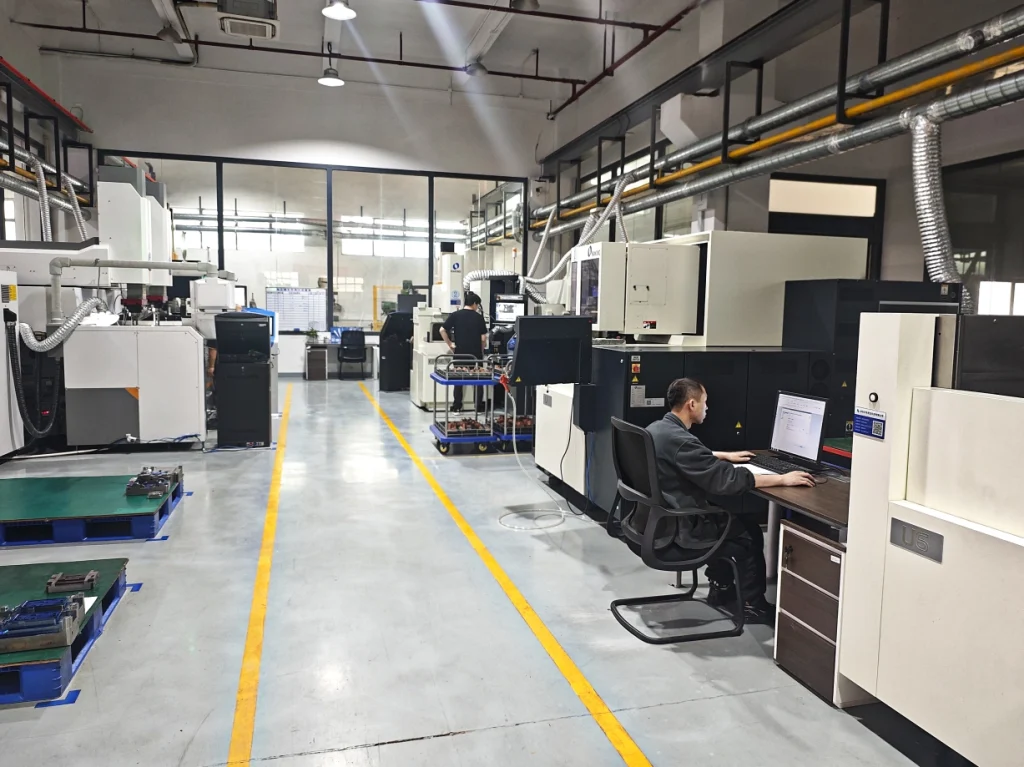

In the automotive field, overmolding makes cars safer and longer-lasting. Overmolded seals help keep electric vehicle batteries dry. Tactile dashboard controls with soft-touch surfaces improve user experience. These components are made using high-precision tools, like those found in Silkbridge’s ISO 9001-certified factory.
Medical Devices: Sterility and Precision
In medical devices, overmolding supports sterility and accuracy. Handles for surgical tools often use biocompatible plastics and soft grips. Wearable sensors must be flexible and safe for skin contact. Silkbridge produces these in a Class 8 cleanroom to meet strict health standards.
Designing for Success: Overmolding Best Practices
Material Selection: Avoiding Common Pitfalls
Choosing the right materials is important. Designers use bonding charts to find good pairs, like PC and TPE. Some plastics melt at different temperatures, and if these are not matched, the overmold may fail. To prevent such issues, teams must understand how each material behaves during the injection overmolding process.
10 Design Rules to Prevent Defects
Designers should follow 10 basic rules to avoid problems. Wall thickness should be even, ideally between 1.5 to 3 millimeters. Sharp edges should be avoided because they cause stress. Using undercuts improves grip between layers. Silkbridge applied these tips when designing a rugged tablet case, ensuring both strength and comfort.
Plastic injection mold tool design including insert molding and overmolding requires skill and experience. Poorly designed molds can cause gaps or bubbles in the final product. That’s why many engineers turn to experienced partners like Silkbridge for help.
Troubleshooting Common Overmolding Challenges
Solving Adhesion Failures and Flashing
Even with good design, issues can happen. Adhesion failure and flashing are common problems. These are often caused by poor alignment or wrong material choice. Fixes include adjusting clamp pressure and reworking mold shutoff areas. Silkbridge uses automated optical inspection (AOI) and X-ray scans to catch and fix such problems before delivery.
Preventing Warping and Short Shots
Warping and short shots can also occur, especially with thick or detailed parts. These problems can be solved by changing cooling times or improving the mold’s air vents. With the right tools and testing methods, overmolding becomes a reliable and repeatable process.
Why Choose Silkbridge for Your Overmolding Projects?
End-to-End Solutions: From Prototyping to Global Delivery
Silkbridge provides full turnkey support from start to finish. They offer prototyping with 3D printing, automated assembly lines, and global delivery using DDP shipping. One example is a smart sensor designed in the UK but built in China. Silkbridge handled everything, showing how china injection overmolding factories can deliver complex products efficiently.
Rigorous Quality Assurance for Critical Industries
Quality matters a lot in industries like medical and automotive. Silkbridge checks every part with live production monitoring and post-molding X-rays. Their medical-grade systems ensure products meet the highest standards. That’s why companies worldwide trust them for custom plastic injection overmolding.
Take the Next Step: Innovate with Confidence
“Transform Your Vision into Reality with Silkbridge”
Why settle for ordinary? Whether you’re prototyping a cutting-edge medical device or scaling production for automotive components, Silkbridge blends British engineering ingenuity with China’s manufacturing prowess. Chat with our experts on WhatsApp today to claim your free design consultation and learn how overmolding can slash your assembly costs by 30%.You can reach Silkbridge phone +86 18122838771, WhatsApp +86 18122838771, Email contact@silkbridgeltd.com.
When you choose a partner with deep knowledge of the injection overmolding process, your ideas come to life faster and better. Silkbridge supports innovation and helps reduce risk with proven tools and methods.
FAQs: Answering Your Overmolding Questions
“Can Overmolding Replace Multi-Part Assembly Entirely?”
Yes. In some cases, overmolding cuts the number of parts from five to one. For example, a handheld gadget once made with screws, buttons, and covers can now be molded as a single unit. This not only lowers costs but also improves strength and looks.
“How Do I Verify a Chinese Supplier’s Quality?”
To make sure you’re working with the right team, ask about quality checks and certifications. Silkbridge provides live factory tours and detailed inspection reports. They meet international standards and back up their claims with transparent processes. That’s how china injection overmolding factories like Silkbridge earn global trust.
